DOST range
DOST · CNG + Petrol · FSD LS

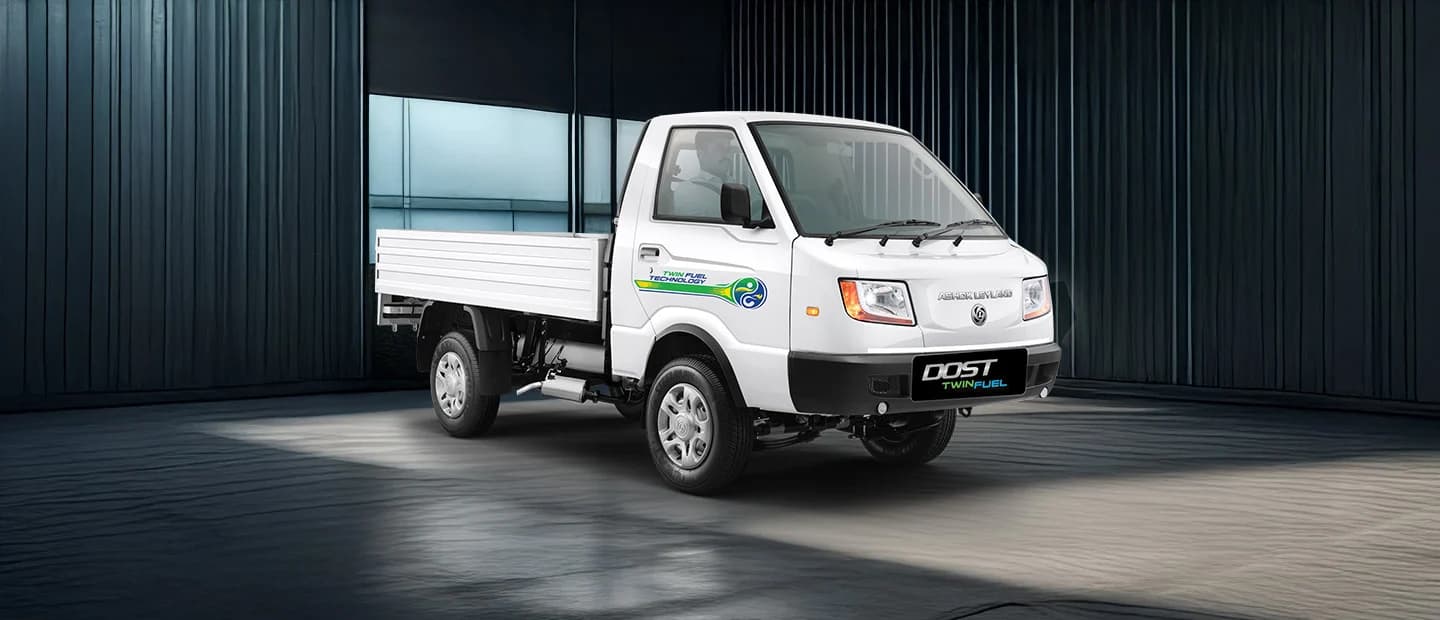

DOST Twin Fuel
- Payload (FSD LS)
- 1,218 kg
- Load body length (FSD)
- 2,500 mm
- Maximum power
- CNG: 45 hp @ 3,300 RPM · Petrol: 40 hp @ 3,000 RPM
- Maximum torque
- CNG: 105 Nm @ 1,600–2,400 RPM · Petrol: 100 Nm @ 1,600–2,400 RPM
Know your vehicle.

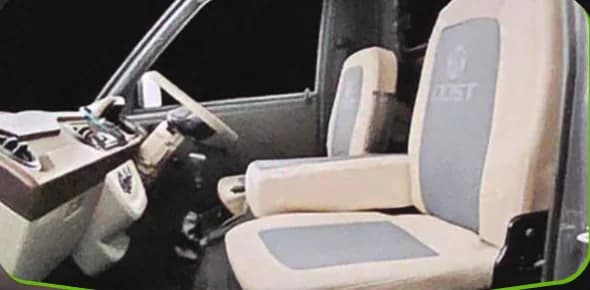

Cabin
- Seating
- Driver + 1
- Steering
- Power steering
Specifications
Specifications from the supplied DOST Twin Fuel brochure. Refer to the brochure for configuration details.
Engine & Performance
Engine
| Type | 1.5L, 3-cylinder CNG (BS VI) |
|---|---|
| Displacement | 1,478 cc |
| Maximum power | CNG: 45 hp @ 3,300 RPM · Petrol: 40 hp @ 3,000 RPM |
| Maximum torque | CNG: 105 Nm @ 1,600–2,400 RPM · Petrol: 100 Nm @ 1,600–2,400 RPM |
Clutch & transmission
| Clutch | Diaphragm, single dry plate, pot type, mechanical cable operated |
|---|---|
| Gearbox | 5 forward + 1 reverse |
Engine & Performance
Engine
- Type
- 1.5L, 3-cylinder CNG (BS VI)
- Displacement
- 1,478 cc
- Maximum power
- CNG: 45 hp @ 3,300 RPM · Petrol: 40 hp @ 3,000 RPM
- Maximum torque
- CNG: 105 Nm @ 1,600–2,400 RPM · Petrol: 100 Nm @ 1,600–2,400 RPM
Clutch & transmission
- Clutch
- Diaphragm, single dry plate, pot type, mechanical cable operated
- Gearbox
- 5 forward + 1 reverse
Load & Dimensions
Fuel
- CNG capacity
- 120 L (60 + 60 L)
- Petrol capacity
- 5 L
Weights & dimensions
- Gross vehicle weight
- 2,555 kg
- Rated payload
- 1,218 kg
- Overall dimensions
- 4,485 L × 1,670 W × 1,845 H mm
- Wheelbase
- 2,350 mm
- Loading platform height
- 840 mm
- Turning circle radius
- 5,400 mm
- Load body
- 2,500 × 1,620 × 440 mm (8.2 × 5.3 × 1.4 ft)
Chassis
Brakes & suspension
- Brakes
- Vacuum assisted hydraulic brakes with LSPV
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Front suspension
- Parabolic leaf and double acting shock absorber
- Rear suspension
- Parabolic leaf and double acting shock absorber
Tyres & cabin
- Tyres
- 185 R14 LT 8PR
- Steering
- Power steering
Cabin & Equipment
Tyres & cabin
- Seating
- Driver + 1
- PTO provision
- Yes (cabin chassis)
Range: 400 km*
Manufacturer brochure claim, measured under internal test conditions. Actual range varies with operating conditions. Refer to the brochure for terms.
Warranty information
The brochures advertise 5 years or 2 lakh km. Their conditions specify 2 years or 1 lakh km, whichever is earlier, provided by the manufacturer, followed by 36 months of extended warranty by a third party if 2 lakh km has not been clocked in the first 2 years. Refer to the brochure for full conditions.
