Specifications
Manufacturer specifications vary by configuration. Contact sales to confirm the offered variant and availability.
Engine & Performance
Engine
Engine specifications| Engine type | 1.5 Litres, Turbo Charged, 3 Cylinder Diesel Engine |
|---|
| Displacement (Cubic Capacity) | 1,478 |
|---|
| Power | 45 HP at 3,300 RPM |
|---|
| Torque | 110 Nm at 1,000-2,400 RPM |
|---|
Clutch
Clutch specifications| Type | 215 mm Dry Type, Single plate / Mechanical actuation |
|---|
Transmission
Transmission specifications| Type/No. of Gears | 5F+1R Manual Gearbox |
|---|
| Gear Shifting | Cable Shift |
|---|
Performance
Performance specifications| Maximum Speed (KMPH) | 80 |
|---|
Engine & Performance
Engine
- Engine type
- 1.5 Litres, Turbo Charged, 3 Cylinder Diesel Engine
- Displacement (Cubic Capacity)
- 1,478
- Power
- 45 HP at 3,300 RPM
- Torque
- 110 Nm at 1,000-2,400 RPM
Clutch
- Type
- 215 mm Dry Type, Single plate / Mechanical actuation
Transmission
- Type/No. of Gears
- 5F+1R Manual Gearbox
- Gear Shifting
- Cable Shift
Performance
- Maximum Speed (KMPH)
- 80
Load & Dimensions
Weight
- GVW (Gross Vehicle Weight) (Kg)
- 2,288
- Rated Payload (Kg)
- 1,120
Dimensions
- Overall Length
- 4,406
- Overall Width
- 1,663
- Overall Height
- 1,833
- Wheelbase
- 2,250
- Load Body/ Cargo Deck (LxBxH)
- 2,500 X 1,620 X 380 mm 8 ft 2 in X 5 ft 3 in X 1 ft 2 in
- Loading Height
- 835
Chassis
Brakes
- Type
- Vacuum Asssisted Hydraulic brake with LSPV
- Front, Rear
- Disc Type, Drum Type
Suspension
- Front
- Parabolic Leaf spring (2L) with double acting Shock absorber
- Rear
- Parabolic Leaf spring (3L) with double acting Shock absorber

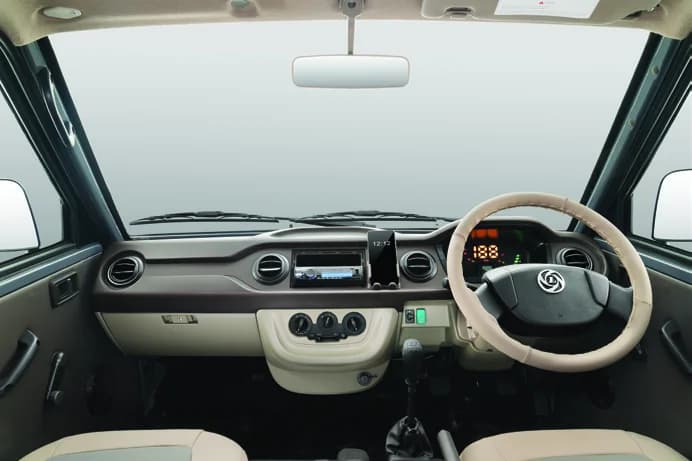

Cabin & Equipment
Seats
- Seating capacity
- Driver + 1
